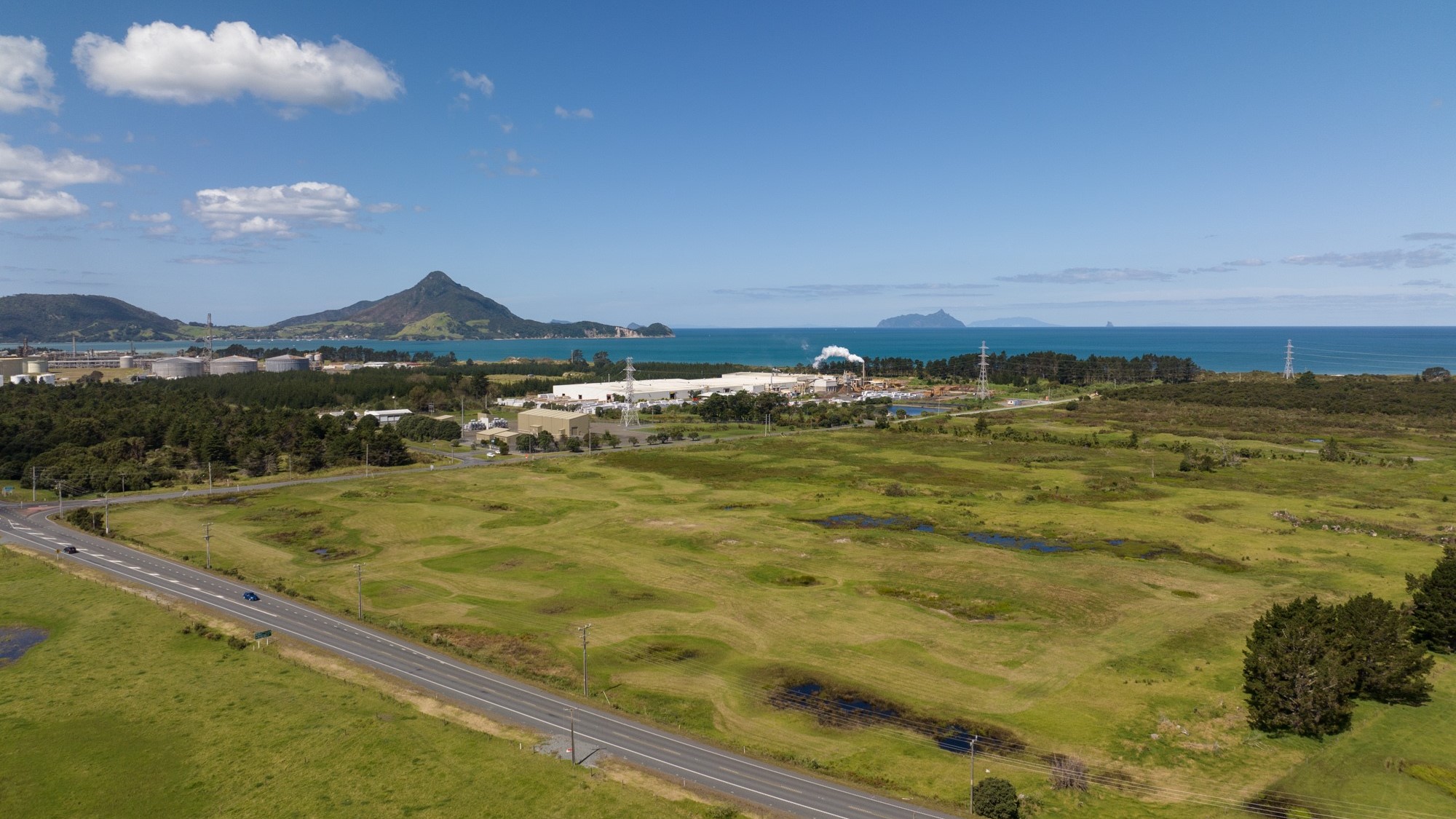

Ruakaka construction site

Ruakākā Energy Park

Ruakākā Energy Park combines a 100-megawatt battery energy storage system (BESS), currently under construction, and a proposed 120-megawatt solar farm located near Marsden Point in Whangārei.

Meridian is committed to increasing the amount of renewable electricity we generate and store so that we can meet New Zealand’s growing demand for electricity with clean energy.  

Solar farms and batteries, alongside hydro stations and wind farms, are part of the solution to reduce New Zealand’s reliance on fossil fuels and support our transition to a resilient net zero economy. 

The Ruakākā Energy Park in Northland will reduce the reliance on electricity generated from other parts of the country and help improve the security of electricity supply for all kiwis.

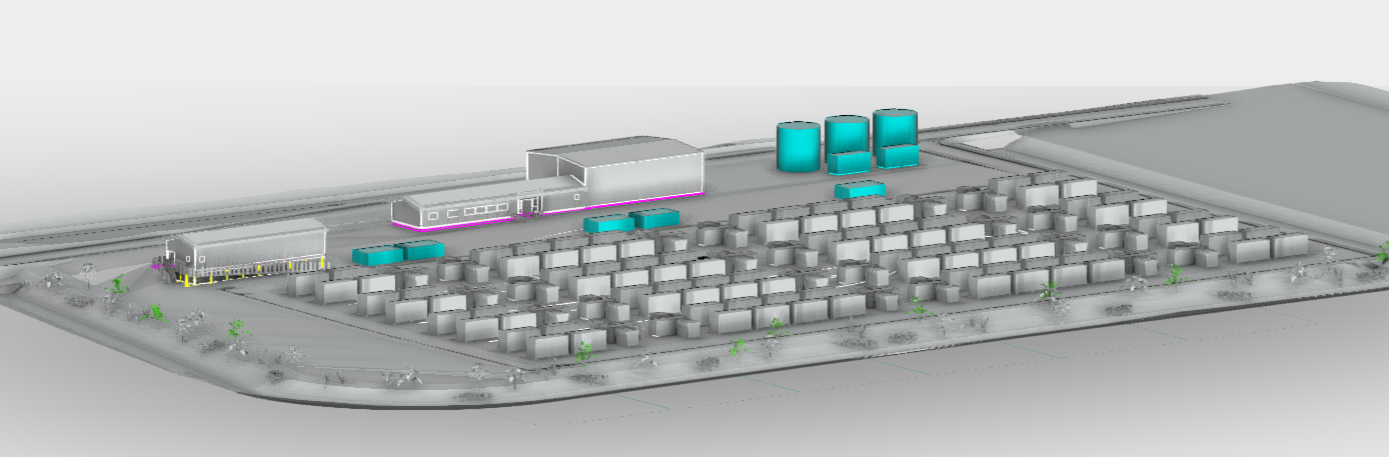

Ruakaka BESS proposed layout

Battery energy storage system (BESS)

The first stage of the Ruakākā Energy Park is a BESS that will store electricity which can then be shared with the national grid when it’s needed most.

The Ruakākā BESS covers an area the size of two rugby fields and will store up to 100MW of electricity. It has a storage capacity of 200MWh, which means its maximum output – enough to power around 60,000 average households during winter – can be sustained for two hours.

The BESS is due for completion in early 2025, when it will be connected directly to Transpower’s Bream Bay substation at 33kV.

Transcript of Building NZ's biggest battery

The video features a combination of aerial and ground shots of the Ruakākā Energy Park construction site. Interviewees are speaking with ongoing construction work visible in the background.

Johnny Wilkinson, McKay Ltd Site Manager: Absolutely, this is the future. Well, it’s a battery (laughs).

Paul Bonetti, United Civil Construction Group Manager: We’re on site at Meridian’s BESS project, Ruakākā. This is the first large-scale battery project of its type in the country, and we’re really excited to be involved in this project.

Leanne Robb, Meridian Procurement Engineer: If the grid requires more power, having the battery here will enable us to respond quite quickly without needing sun or water or wind.

Johnny Wilkinson: First of its kind, pretty awesome to be part of.

Leanne Robb: So it’s 100 megawatts of power, for two hours.

Johnny Wilkinson: So it’s a real good thing for the country, for the world as well.

Paul Bonetti: This project’s great for us to be able to work locally and there’s a strong component of using local labour.

Leanne Robb: I really wanted to be able to make a difference as part of New Zealand’s energy transition.

Johnny Wilkinson: And of course, it’s a new industry for a lot of people to get into. So a lot of development dollars for the country all the way down.

Mike Wilson, Meridian Project Manager, BESS: Being the first to build this is a gutsy move. I’m very pleased to be working on this project and proud to be here.

Leanne Robb: It’ll be fun to drive past in 20 years’ time, hopefully, and see it still operating. It’s always exciting to be involved in a project like this, knowing that you’re doing something for the greater good of the country.

Why a BESS?

Battery energy storage systems are set to play an increasingly important role in New Zealand’s electricity supply.

As companies like Meridian grow the amount of renewable energy from sources such as wind and sun – where the timing of generation can’t be guaranteed – battery energy storage systems provide somewhere to store energy for use when demand is high.

This will help smooth out fluctuations in energy supply, and ensure a more secure, stable and resilient electricity grid.

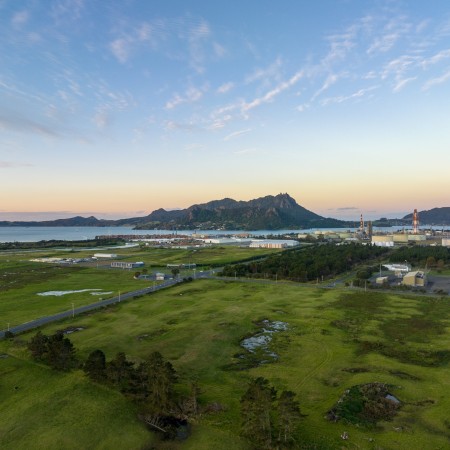

Ruakākā BESS aerial shot

Solar farm

The second stage of the Ruakākā Energy Park is a proposed 120MW solar farm. This will cover 172ha of land and produce around 150-200GWh of energy per year from about 200,000 solar panels.

That’s enough to power over half of Northland’s homes in an average year.

Solar energy will be conveyed to the switching station located at the BESS site, via several inverter stations and a 33kV connection, prior to injection into the national grid at Transpower’s Bream Bay substation.

We are currently working through the resource consent process and detailed design of the project.

Wetland enhancement

We have a plan to enhance and protect an existing 9ha wetland on site 1, which is significantly degraded after many years of cattle grazing, as well as creating a new wetland area of around 11.7ha on site 3. These will provide habitats for taonga bird species such as bittern and dabchick ducks.

The new wetland will also cleanse stormwater generated from the adjoining commercial area as it passes through the wetland then out to the Ruakākā River.

The timeline for construction

The work has three stages:

Stage 1: Earthworks and drainage – March to July 2023

Stage 2: Battery support infrastructure – July 2023 to February 2024

Stage 3: Battery installation and commissioning – March 2024 to early 2025
